Introduction：

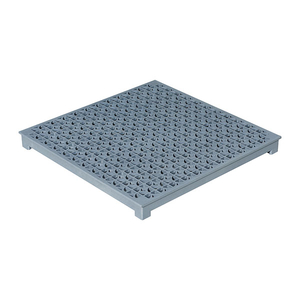

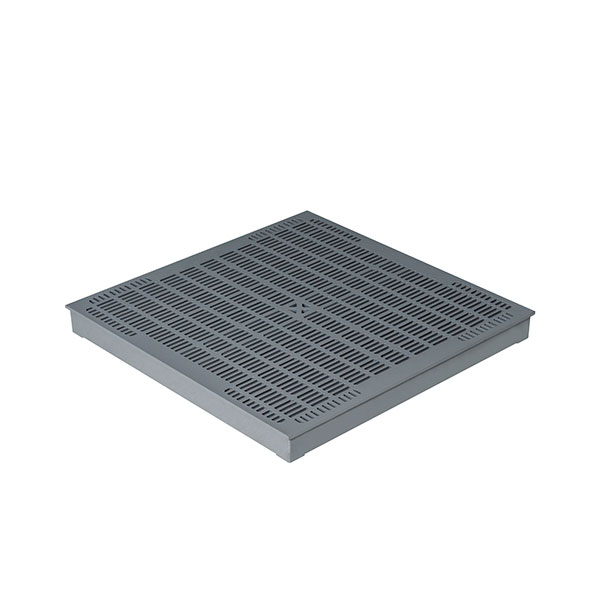

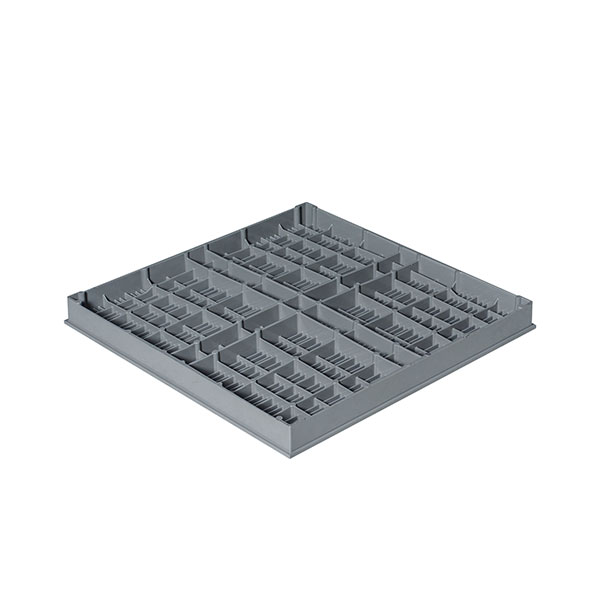

Huilian aluminum grating panel is the industry's only air flow panel that allows adjustment in thickness to sit flush with the adjacent solid panels. The HPL series has a free area of 0-50% and comes with or without sliding dampers
Type | HLG500 HLG700 HLG1000 |
Size | 600*600*50mm 600*600*55mm |
Materials | aluminum |

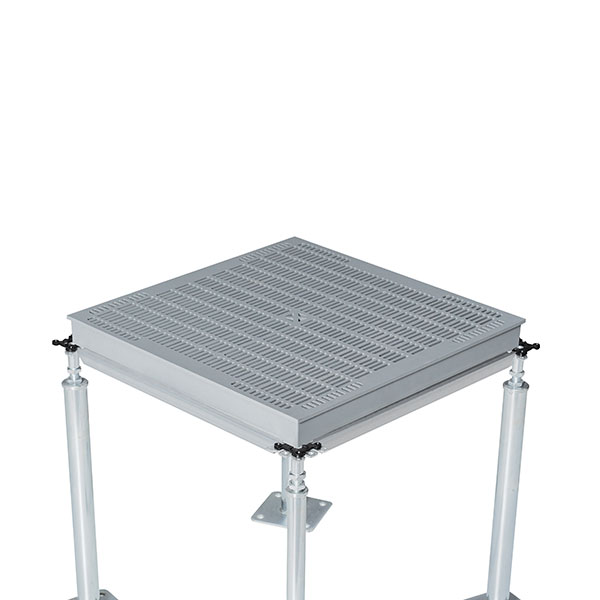

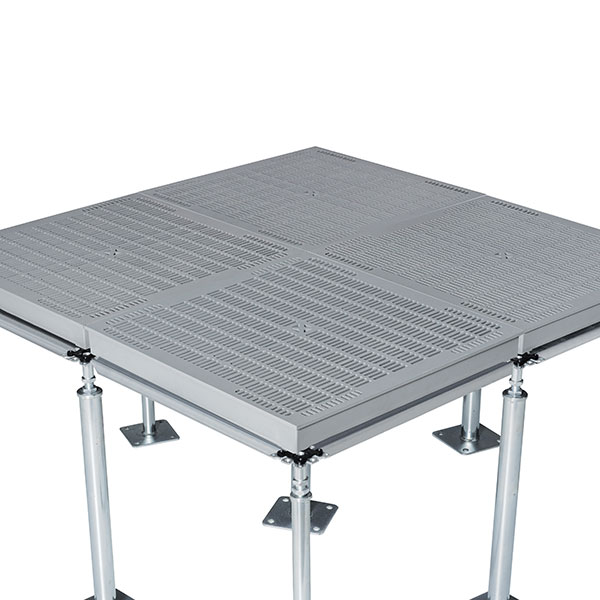

Installation | stringer system |
Finish | HPL/PVC |
Technical parameters:
Project | Detail | HLG500 | HLG700 | HLG1000 |
1-1 | Finish | Epoxy powder coating | ||
1-2 | System resistance | Conductive 1O4-1O6Ω | ||
2-1 | Material | Die-cast aluminum | ||
2-2 | Concentrated load | 500kgf/6.45cm2 | 700kgf/6.45cm2 | 1000kgf/6.45cm2 |
2-3 | Ultimated load | 1000kgf/6.45cm2 | 1500kgf/6.45cm2 | 2000kgf/6.45cm2 |
2-4 | Uniform load | 1000kgf/m2 Deflection<=1.0mm | 1500kgf/m2 Deflection<=1.0mm | 2000kgf/m2 Deflection<=1.0mm |
3-1 | Special treatment | Epoxy coating or Ni-Cr plating | ||
Introduction：
Huilian aluminum grating panel is the industry's only air flow panel that allows adjustment in thickness to sit flush with the adjacent solid panels. The HPL series has a free area of 0-50% and comes with or without sliding dampers
Type | HLG500 HLG700 HLG1000 |
Size | 600*600*50mm 600*600*55mm |
Materials | aluminum |
Installation | stringer system |
Finish | HPL/PVC |
Technical parameters:
Project | Detail | HLG500 | HLG700 | HLG1000 |
1-1 | Finish | Epoxy powder coating | ||
1-2 | System resistance | Conductive 1O4-1O6Ω | ||
2-1 | Material | Die-cast aluminum | ||
2-2 | Concentrated load | 500kgf/6.45cm2 | 700kgf/6.45cm2 | 1000kgf/6.45cm2 |
2-3 | Ultimated load | 1000kgf/6.45cm2 | 1500kgf/6.45cm2 | 2000kgf/6.45cm2 |
2-4 | Uniform load | 1000kgf/m2 Deflection<=1.0mm | 1500kgf/m2 Deflection<=1.0mm | 2000kgf/m2 Deflection<=1.0mm |
3-1 | Special treatment | Epoxy coating or Ni-Cr plating | ||
