Introduction:

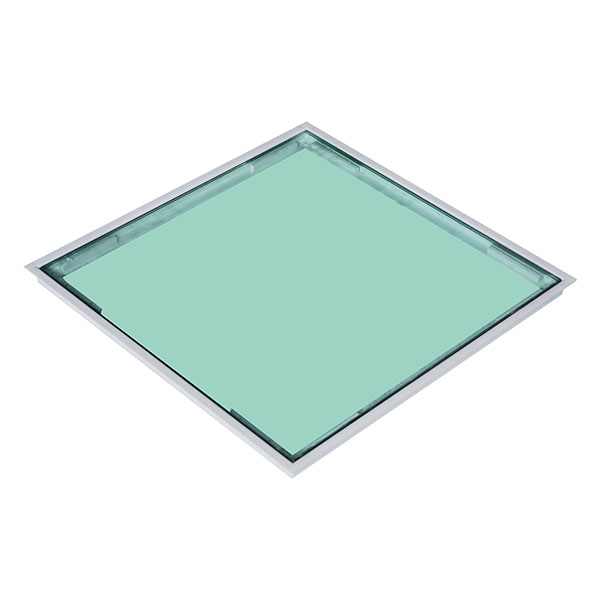

The glass raised floor is 20mm thick made of two layers of stalinite. It is compatible for whole range of Huilian raised floor system by using an unique designed strong steel frame.
Type | FS1000 |
Size | 600*600* 35mm |
Materials | steel, glass |

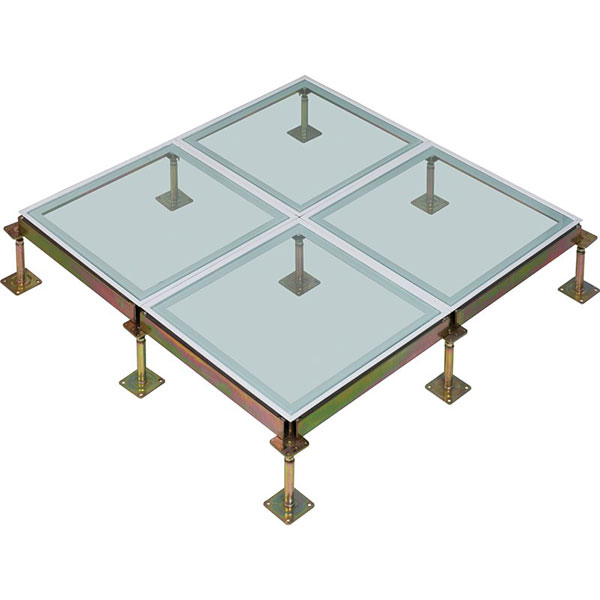

Installation | stringer system |
Finish | glass |
Characteristics:
● High load bearing capacity
● Transparent
● Free interchangeability
● Quick and easy installation
Application:
It is recommended where underfloor instrument observation is required.
Under-structure:
It can be installed with steel panel, Aluminum panel, and Calcium Sulphate panel.
Technical parameters:
Type | Size mm | Concentrated load | Rolling load | Ultimated load | Uniform load | Fire protection performance |
FS1000 | 600*600*35 | 4450N/454KG | 3560N | 13350N | 23000N | Non-combustible material |
Introduction:
The glass raised floor is 20mm thick made of two layers of stalinite. It is compatible for whole range of Huilian raised floor system by using an unique designed strong steel frame.
Type | FS1000 |
Size | 600*600* 35mm |
Materials | steel, glass |
Installation | stringer system |
Finish | glass |
Characteristics:
● High load bearing capacity
● Transparent
● Free interchangeability
● Quick and easy installation
Application:
It is recommended where underfloor instrument observation is required.
Under-structure:
It can be installed with steel panel, Aluminum panel, and Calcium Sulphate panel.
Technical parameters:
Type | Size mm | Concentrated load | Rolling load | Ultimated load | Uniform load | Fire protection performance |
FS1000 | 600*600*35 | 4450N/454KG | 3560N | 13350N | 23000N | Non-combustible material |
